Whynter 14,000 BTU 600 sq ft NEX Inverter Dual Hose Cooling Portable Air Conditioner

Description

The Whynter ARC-1230WN NEX Inverter Dual Hose Cooling Portable Air Conditioner boasts the highest cooling capacity on the market, with a BTU of 14,000 ASHRAE and 12,000 SACC. Its versatile settings allow for efficient and effective cooling, dehumidification, and air circulation in spaces up to 600 sq. ft. Additionally, this portable air conditioner can be controlled through WiFi using Amazon Alexa, Google Home voice assistant, or the NetHome Plus app for ultimate convenience.



Smart functions such as the 24-hour Timer, Sleep Mode, Auto restart, Self-Diagnosis, Express Run Settings, Schedules, and Filter Check Reminder Light come standard with NEX Inverter Dual Hose Cooling Portable Air Conditioners. With the NetHome Plus app for Android and iOS, you can remotely control the temperature and ensure your home is comfortable upon arrival. Furthermore, our NEX portable air conditioners are compatible with Amazon Alexa and Google Home voice assistants.

Specification

Model: ARC-1230WN

• The color of the air conditioner is white.
• The cooling capacity of the air conditioner is 14,000 BTU (ASHRAE) / 12,000 BTU (SACC).
• The dehumidifying capacity is 87 pints.
• The refrigerant used is R32.
• The air conditioner has a patented auto drain function which automatically exhausts all condensate in most environments.
• The advanced Inverter technology used in this air conditioner allows for 20% more cooling capacity and 40% energy savings.
• The air distribution can be optimized with a fully automatic 80-degree flexible airflow louver.
• There are four operational modes: Auto, Cool, Dehumidify, and Fan.
• The air conditioner has a digital display and comes with a remote control.
• It also has Smart Control capabilities, allowing for WiFi and voice connectivity.
• Control the Whynter 14,000 BTU 600 sq ft NEX Inverter Dual Hose Cooling Portable Air Conditioner from anywhere with the NetHome Plus app through Wi-Fi.

• Use voice control with Amazon Alexa or Google Home voice assistant.
• Intelligent features include a 24-hour Timer, Sleep Curve, Self-Diagnosis, Express Run Settings, and Schedules.

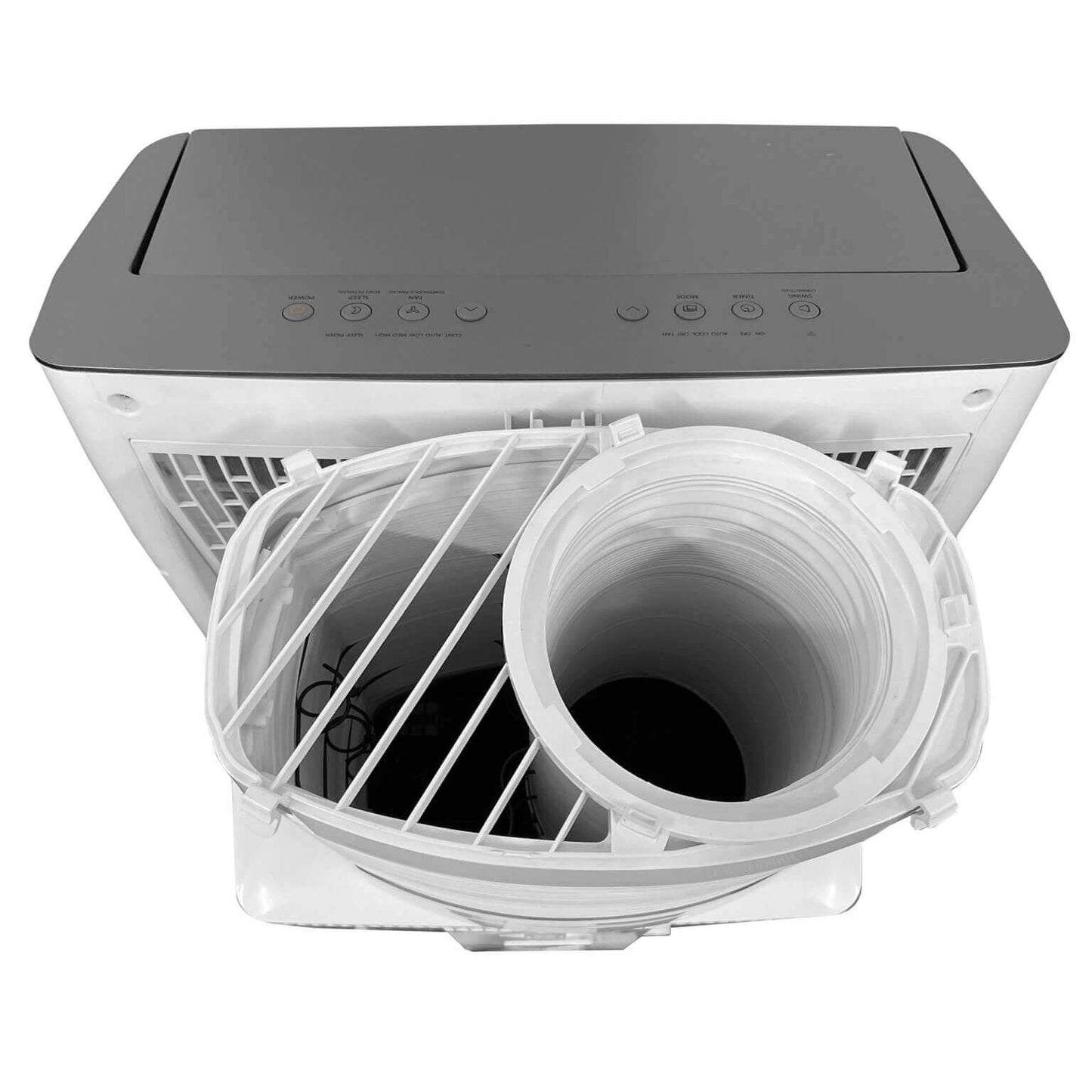

• Innovative "Hose-in-hose" design with a sealed bottom structure prevents heat leakage.
• LCDI (Leakage-Current Detection and Interruption) plug for safety.
• Upper and lower drain ports for continuous operation with drain methods including Continuous Gravity and Manual.
• Quiet and efficient cooling for any room, no permanent installation required.
• Choose from continuous, auto, low, medium, or high fan speed.
• Easily washable air filter for clean air.
• Full thermostatic control with a temperature range of 60°F to 86°F.

Measurements

Measurements and weight (ARC-1230WN):

• Unit dimensions: 19.5” W x 16.7” D x 32.5” H
• Packaging dimensions: 21” W x 22” D x 35” H
• Net weight: 73 lbs
• Gross weight: 85 lbs

Electrical Specifications:

• Noise level (low/medium/high speed fan speed): <42.5 dB low / 49.5 dB medium / 53.5 dB high
• Auto restart after power outage
• Intake and Exhaust (Hose-in-hose): 12″ W x 7.25″ D with length up to 47″
• Window Kit : Length up to 49”
• Air Flow (low/medium/high speed): 384 m3h, 225 CFM / 415 m3h, 244 CFM / 661 m3h, 388 CFM
• Maximum cooling power consumption: 1266W / 11.8A
• CEER: 12.3
• Power supply: 115 V / 60Hz / 1 Phase

Model ARC-1230WN: Whynter 14,000 BTU 600 sq ft NEX Inverter Dual Hose Cooling Portable Air Conditioner.pdf

Warranty

Whynter Portable Air Conditioner Warranty:

ONE YEAR LIMITED WARRANTY & THREE YEAR WARRANTY ON COMPRESSOR

WHYNTER portable air conditioners are backed by a one-year warranty that protects against material and workmanship defects under normal residential use. This warranty is available to the original purchaser who bought from an authorized Whynter dealer within the 48 U.S. continental states. In the event of any defects within one year of purchase, please reach out to Whynter's Customer Support team with the serial number and proof of purchase to initiate a warranty claim. A Return Authorization number is necessary for returning any parts or products, and items without this number will not be accepted. Under this warranty, Whynter offers repair services, replacement of defective parts with new or re-manufactured ones, or product exchange at our discretion. All repairs or replacements will be conducted through mail-in service to our Service Center. Please note that this warranty is non-transferable and any labor and parts costs incurred after its expiration will be the responsibility of the original owner.

The compressor for portable air conditioners has an extended warranty of two years beyond the original one year limited warranty, beginning from the date of purchase.
